Universal FCU

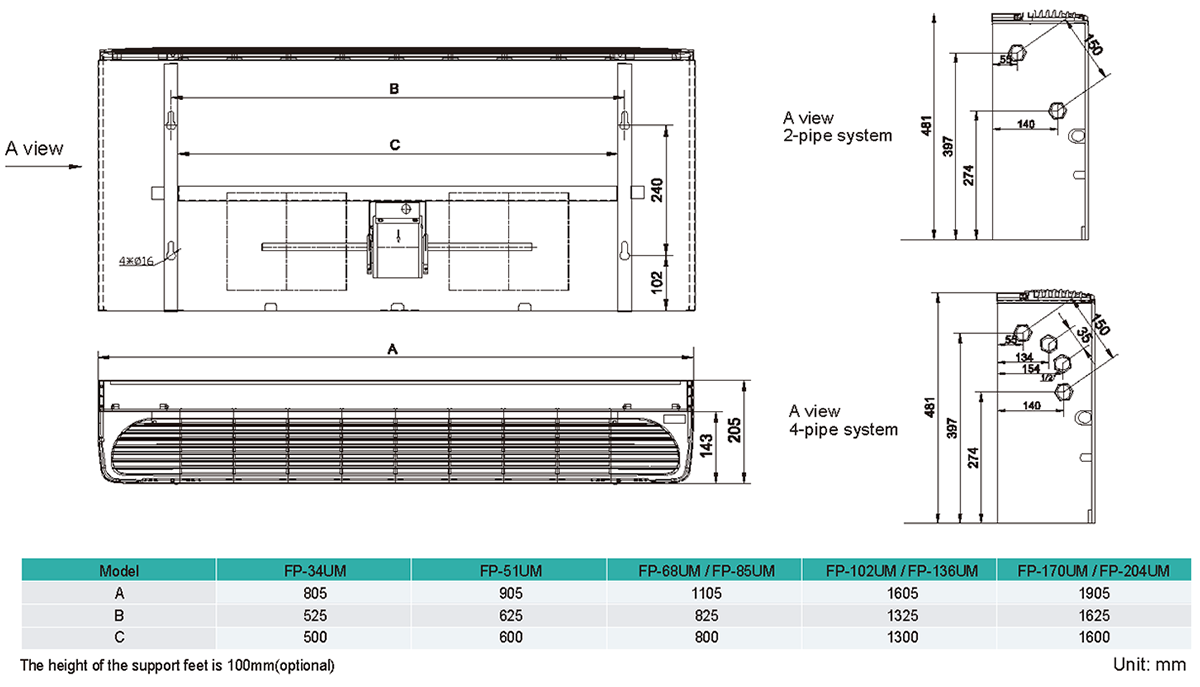

Water pipe connection direction
L: Left pipe connection(facing the air outlet)
R: Right pipe connection(facing the air outlet)

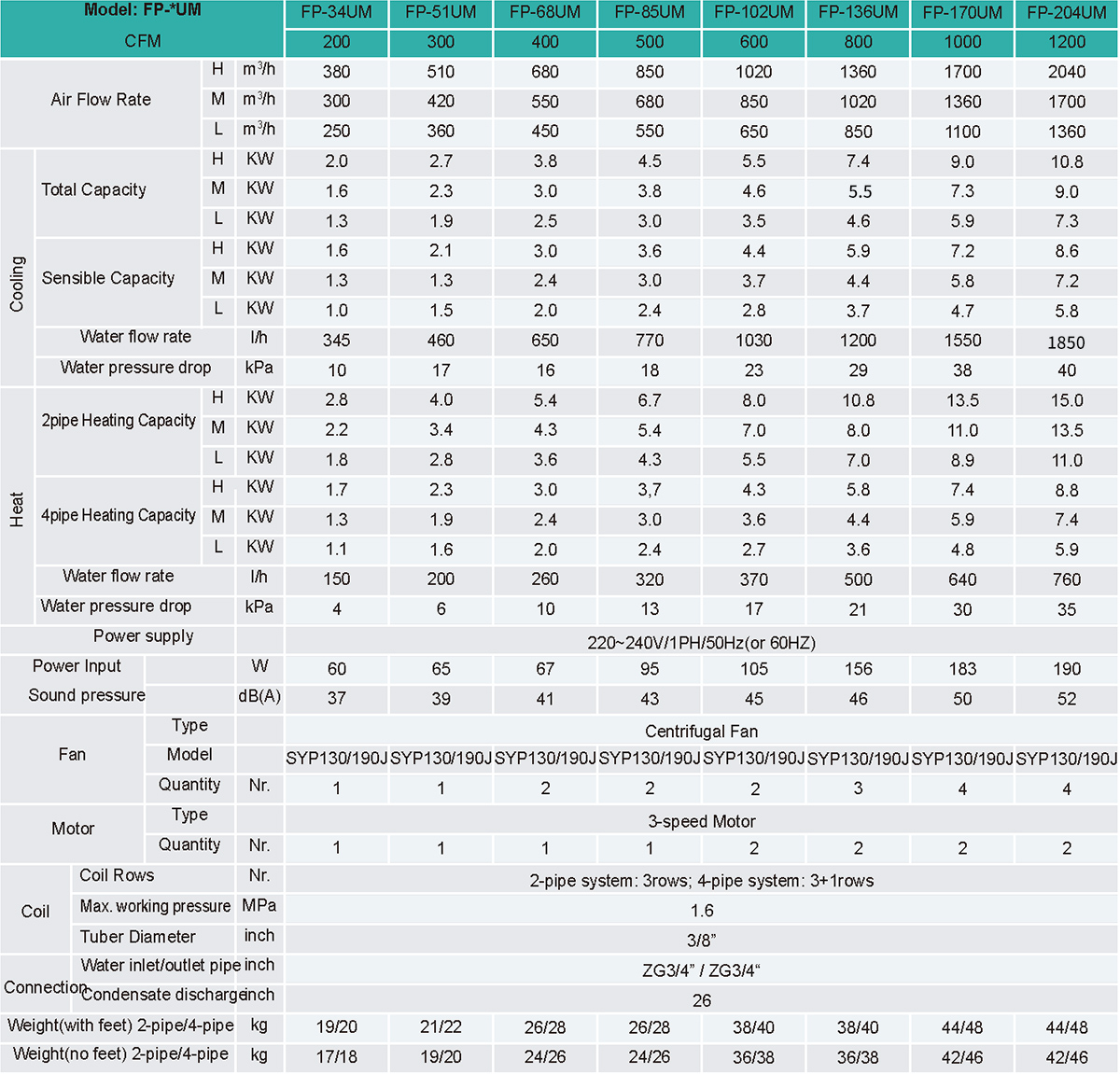

Advantagestechnical parameter

Centrifugal Fan
Well-known brand centrifugal fans, with galvanized steel and which is statically and dynamically balanced.

Condensate Drain Pan
L shaped drain pan, suitable for horizontal and/or vertical installation.

High Efficiency Coil
Coil are made of copper tubes and high exchange surface area aluminum blue fins. All coils are 100% tested against leaks by 16bar,1.6Mpa air pressure. with 3/4”pipe connections and air bleed vent.
